Acknowledgements

• Generation and look of calendar adapted from Da9el00, link to original project

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter HelpWindow ViewWindow etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

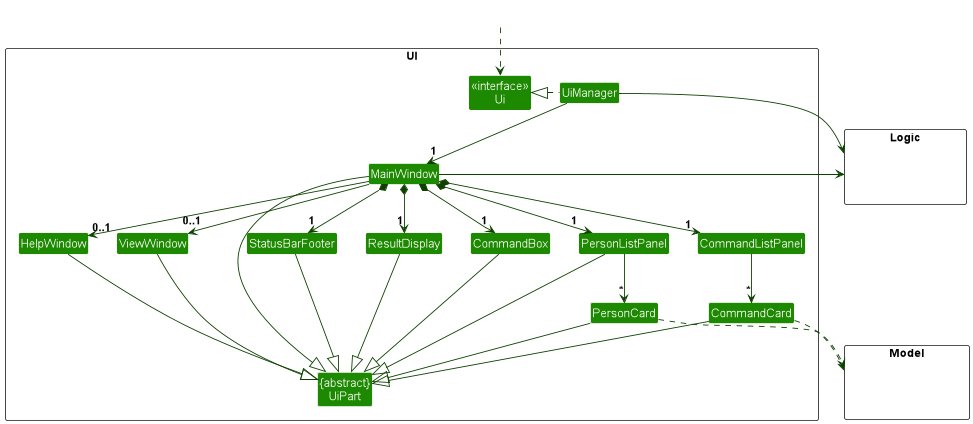

Here’s a (partial) class diagram of the Logic component:

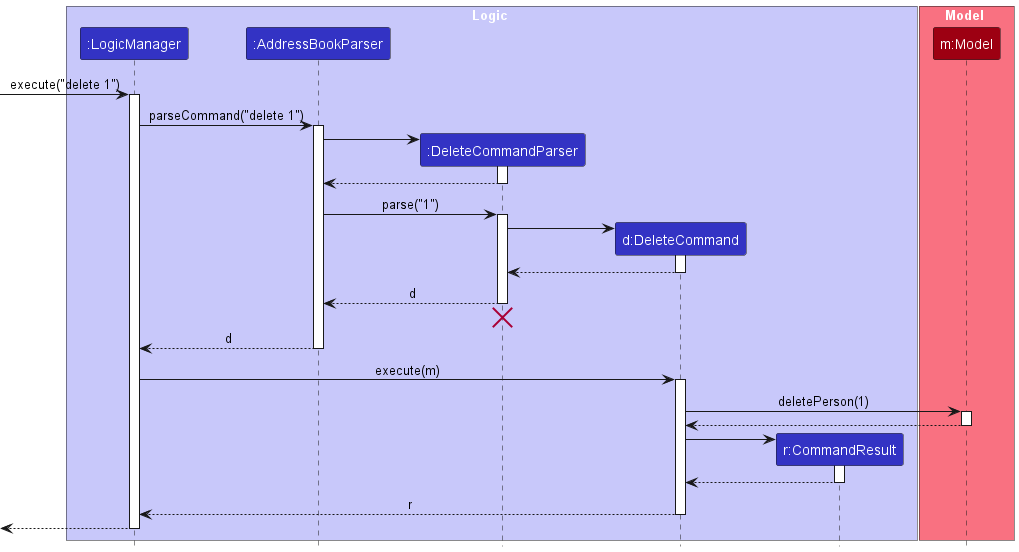

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

The Model component,

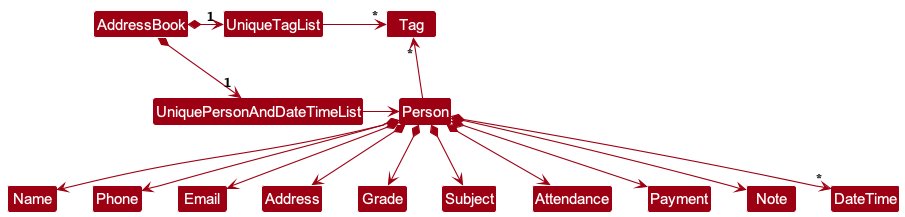

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonAndDateTimeList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• stores a CommandHistory object that stores the previous commands performed. This is exposed to the outside as a ReadOnlyCommandHistory objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Filter Command

Implementation

The Address book filter is made with GradeSubjectFilterPredicate. It extends from Predicate functional interface and is used to set as a condition to check that for each student, the Grade and Subject specified is met. Predicates created can be updated using the method Model#updateFilteredPersonList(predicate).

The Grade and Subject classes are set as additional data fields in Person.

• Both classes have exposed methods isEmpty(), to check if the grade and subject parameters are specified.
• When unspecified:
  • Grade() equals to Grade("-") (i.e. “-“ will be shown when there is no grade for the student.)
  • Subject() equals to Subject("No subject") (i.e. “No subject” will be shown when no subject is assigned for the student.)

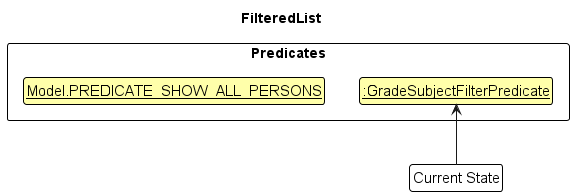

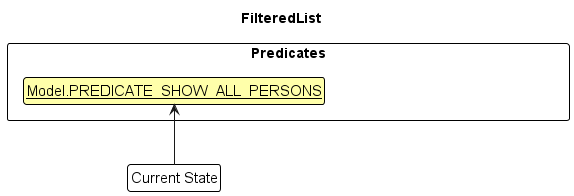

Given below is an example usage scenario and what the predicate is at each step.

Step 1. The user launches the application for the first time. The student’s contacts in a form of FilteredList will be shown, where the predicate states that condition is true for all.

Step 2. The user executes filter g/A command to get all students in the FilteredList who has an “A” grade. The filter command creates GradeSubjectFilterPredicate, and calls Model#updateFilteredPersonList(predicate), updating the list to show students that has an “A” grade.

Calling list command will revert the predicate back to Model.PREDICATE_SHOW_ALL_PERSONS.

The following sequence diagram shows how a filter operation goes through the Logic component:

Similarly, how a filter operation goes through the Model component is shown below:

The following activity diagram summarizes what happens when a tutor executes a filter command.

Design considerations

• Alternative 1: Filtered address book result can be saved, since in practice, there will only be a few combinations of filters.
  • Pros: Operation will be fast as the number of students increases.
  • Cons: More memory usage.
• Alternative 2 (Implemented): Introduce command history to avoid typing long commands.
  • Pros: Useful for the entire application, and would use less memory compared to alternative 1. (e.g. storing the first 10 commands).
  • Cons: Harder to implement.

Payment Command

Implementation

The payment command in the Address book application is implemented using the PaymentPredicate, which extends the Predicate functional interface. This predicate is used to set a condition for filtering students based on whether they have paid or not paid.

The application allows updating the payment predicate using the Model#updateFilteredPersonList(predicate) method.

The Payment class is added as an additional data field in the Person class.

• When unspecified:
  • Payment() equals to Payment("-") (i.e. “-“ will be shown when the payment status is not available for the student.”)

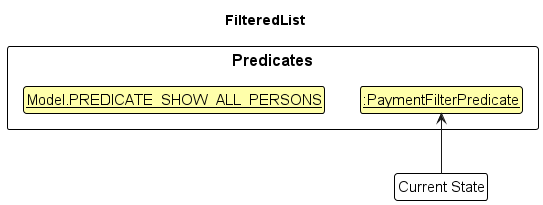

Given below is an example usage scenario and what the predicate is at each step.

Step 1. The user launches the application for the first time. The student’s contacts in the form of FilteredList will be shown, where the predicate states that the payment condition is true for all.

Step 2. The user executes payment pa/paid command to get all students in the FilteredList who has an “Paid”. The payment command creates PaymentFilterPredicate, and calls Model#updateFilteredPersonList(predicate), updating the list to show students that has “Paid”.

Calling list command will revert the predicate back to Model.PREDICATE_SHOW_ALL_PERSONS.

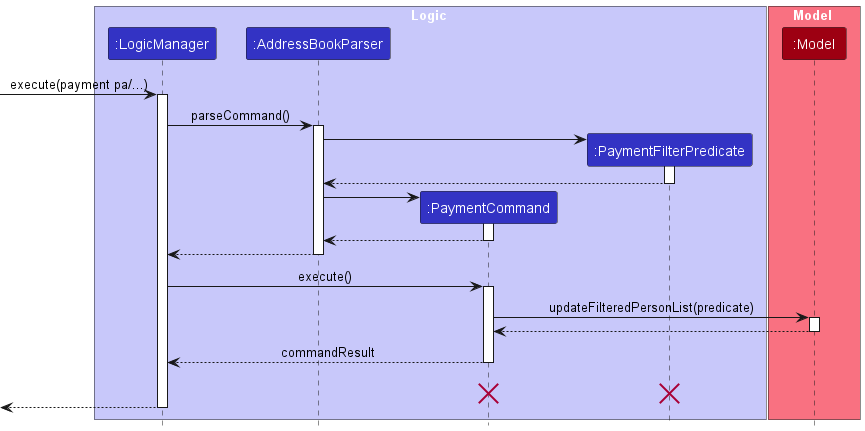

The following sequence diagram shows how a Payment filter operation goes through the Logic component:

The following activity diagram summarizes what happens when a tutor executes a filter command.

View Command

Implementation

The view commmand in the Address book application is implemented using ViewWindow, where Logic#getFilteredPersonList() retrieves the list of students to be shown in the ViewWindow calendar.

The DateTime' class is set as additional data fields in Person` which is used to map the students to their respective calendar dates.

Step 1. The user launches the application for the first time.

Step 2.

• The user executes view command to view schedule on a calendar. The view commands calls MainWindow#handleView(). The ViewWindow will be initialized with the initial Logic in MainWindow.
• ViewWindow#drawCalendar() executes and it calls on ViewWindow#createSessionMap(currentFocusedDate) to create a map of all tutoring sessions that falls on a date in the current focused month.
• ViewWindow#createSessionsOnDay is executed on every date in the map of all tutoring session created previously to draw all sessions corresponding to their date in the calendar.

Step 3. User views all sessions according to days in the current focused month.

Step 4. User click on right/left arrow button to view next/previous month, repeat from step 2

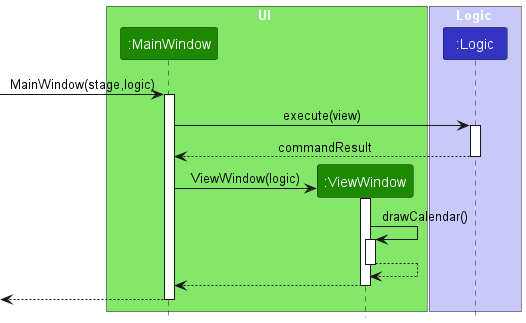

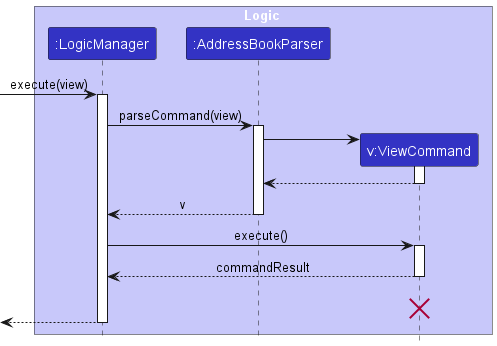

The following sequence diagram shows how a view operation goes through the Logic component:

The following sequence diagram shows how a view operation goes through the UI component:

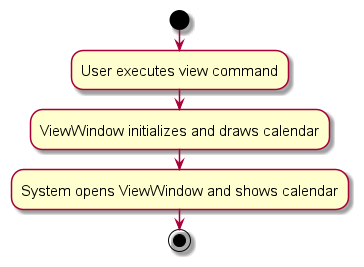

The following activity diagram summarizes what happens when a tutor executes a view command.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• Tech-savvy tutors who:
  • has a need to manage a significant number of contacts
  • prefer desktop apps over other types
  • can type fast
  • prefers typing to mouse interactions
  • is reasonably comfortable using CLI apps

Value proposition: Allows tutors to view details of students that they are currently teaching, in a simple GUI application that favors CLI experience.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	new tutor	see usage instructions	refer to instructions when I forget how to use the App
* * *	tutor	add a new tutor	manage the new tutor’s schedule
* * *	tutor	delete a student	remove entries that I no longer need
* * *	tutor	find a student by name	locate details of students without having to go through the entire list
* * *	tutor	add a student	register a student for tutoring
* * *	tutor	list all students	view all registered students
* * *	tutor	edit details of a student	update whenever their contact details changes
* * *	tutor	edit my own details	update whenever my contact details changes
* *	tutor	filter my students by subject / grade level	tailor my teaching approach according to students’ needs
* *	tutor	categorise my students by payment status	remind their parents of their tuition fees
* *	tutor	view my schedules	get to the appointed lessons on time
*	tutor	track attendence of students	monitor their commitment to tutoring sessions
*	tutor	reschedule sessions with my students	accomodate changes in availability
*	tutor	make session notes for students	keep track of lesson details
*	tech-savvy tutor	have access to a command history	so that I can eliminate typing long commands more than once.

{More to be added}

Use cases

(For all use cases below, the System is the TutorsGo and the Actor is the tutor, unless specified otherwise)

Use case: Adding a student note

MSS

1. Tutor adds a note for a particular student.

2. TutorsGo shows a success message.

   Use case ends.

Use case: Filter students

MSS

1. Tutor filters student by grade and/or subject.

2. Tutor shows a success message along with students meeting criteria.

   Use case ends.

Extensions

• 1a. Parameters given are invalid.

  • 1a1. TutorsGo shows an error message.

  Use case ends.

Use case: Adding a student

MSS

1. Tutor adds a student.

2. TutorsGo shows a success message.

   Use case ends.

Extensions

• 1a. Parameters given are invalid.

  • 1a1. TutorsGo shows an error message.

    Use case ends.

Use case: Check command history

MSS

1. Tutor checks the command history.

2. TutorsGo shows a command history list.

   Use case ends.

Extensions

• 1a. Tutor enters the command he/she wants to run.

  • 1a1. TutorsGo shows output of command.

  Use case ends.

Use case: View schedule

MSS

1. User requests to view schedule

2. TutorsGo shows upcoming schedule of current month

   Use case ends.

Use case: Track payment status

MSS

1. User requests to list students
2. TutorsGo shows a list of students
3. User requests to track students who not paid in the list

4. TutorsGo shows all the student Not paid

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. TutorsGo shows an error message.

    Use case resumes at step 2.

{More to be added}

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 students without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Should handle errors without crashing
5. Should be able to function in offline environments
6. Command names should be clear and well-defined
7. Error messages should clearly state issues or propose solution
8. Should be used by a single user
9. Should still work on CLI if there is no GUI.

{More to be added}

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• CLI: Command line interface
• GUI: Graphical user interface

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Adding a student

1. Adding a student to the address book.

   1. Prerequisites: None.

   2. Test case: add n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 g/B+ s/Mathematics d/2024-02-03 1800
      Expected: Contact is added at the bottom of the list. Details of the newly added contact shown in the status message.

Editing a student

1. Editing a student while all students are being shown

   1. Prerequisites: List all students using the list command. Multiple students in the list.

   2. Test case: edit 1 p/91234567 e/johndoe@example.com
      Expected: First contact’s phone number and email address changed accordingly. Details of the edited contact shown in the status message.

Deleting a student

1. Deleting a student while all students are being shown

   1. Prerequisites: List all students using the list command. Multiple students in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message.

   3. Test case: delete 0
      Expected: No student is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Filtering a student by grade/subject

1. Filtering a student in the address book.

   1. Prerequisites: Multiple students in the list, with GRADE = B+ and SUBJECT = Mathematics manually assigned to at least one student.

   2. Test case: filter g/B+
      Expected: One or more students are returned from the list. Details of the filter and number of students returned shown in status message.

   3. Test case: filter g/B+ s/Mathematics
      Expected: Similar to previous.

   4. Test case: filter g/A
      Expected: No student returned from the list. Details of the filter and number of students returned shown in status message.

   5. Other incorrect filter commands to try: filter g/x s/y (where x and y are invalid inputs described in User Guide)
      Expected: Nothing happens to the current list. Error details shown in the status message.

Categorise students by Payment Status

1. To categorize students based on their payment status.

   1. Prerequisites: List all students using the list command.

   2. Test case: payment pa/Paid
      Expected: List of students who have paid their fees are returned. The status message displays the chosen payment status along with the number of students matching the payment status.

   3. Test case: payment pa/Not Paid
      Expected: List of students who have not paid their fees are returned. The status message displays the chosen payment status along with the number of students matching the payment status.

   4. Test case: payment pa/-
      Expected: List of students whose payment status is not specified or not ready are returned. The status message displays the chosen payment status along with the number of students matching the payment status.

   5. Other incorrect payment commands to try: payment pa/paying (where “paying” or any other payment status other than “Paid” or “Not Paid” in case-insensitive format is considered invalid input).
      Expected: It will not categorize any students and list remain unchanged. It will also display an error message in status message.

View calendar

1. Viewing the calendar to show monthly sessions.

   1. Prerequisites: List all students using the list command. At least one student in the list has a datetime. If none, copy add n/Tom Jerry p/98765432 e/tom@example.com a/tom street, block 123, #01-01 d/2024-02-03 1800 and change date to current month and year.


   2. Test case: view
      Expected: Calendar window opens and sessions show up in calendar box corresponding to information from the list.

Check command history

1. Checking command history on current instance of address book.

   1. Prerequisites: At least one successful command ran besides history command itself.

   2. Test case: history
      Expected: returns a new list of at least one successful command. Success message shown on status bar.

Re-run command from command history

1. Re-run command history on current instance of address book.

   1. Prerequisites: At least one successful command ran besides history command itself.

   2. Test case: history 1
      Expected: The first successful command on the command history list will run again. Status message dependent on the first command.

   3. Other incorrect history commands to try: history x (where x is larger than the list size)
      Expected: Nothing happens to the current list. Error details shown in the status message.

---

Appendix: Effort

• Challenge faced: Coming up with a basic calendar fxml that is able to show the information required by the project
  • There were significant difficulties in trying to create a look for a calendar and attaching the information to the calendar while at the same time figuring out the logic to store the information needed and mapping them to the corresponding calendar boxes. With the reuse of the calendar fxml and generation of calendar boxes, it allowed for the difficulty level to drop from high to medium. All the attention could now be spent on figuring out the backend logic behind the calendar and making sure information is stored and shown accurately. This also gave attention to resolving bugs such as duplicate datetime which was also another challenge as it took a significant amount of time figuring out how information is stored and checked throughout the list and implementing the required methods while making sure all other functions continue working correctly.

---

Appendix: Planned Enhancements

Team size: 4

1. Improve readability of command history list: As of v1.3, the output of each command in the history is verbose, and introduces a lot of user-unfriendly code to the user. We plan to show only the command output that was typed by the user.
2. Comprehensiveness of error messages: Error messages for list indexes <= 0 are inconsistent with positive indexes, even though the index is compliant with the command format. Examples of commands requiring indexes are delete, edit, history. We plan to ensure consistency with the error message so long as it is an index value.
3. Improve UI when viewing monthly schedule: Resolving UI alignment of session information with calendar boxes when there is not enough sessions to fill up the calendar boxes.
4. Accommodate ‘extreme’ inputs. (e.g. name/address/tag with 1000 characters to prevent visibility issues, phone no. that are shorter than 3 and longer than 14 numbers)
5. Improvements to accepted naming convention. (e.g. accept names with s/o, reject entries containing numerical characters)
6. Distinguish identical names more adequately. (e.g. Andrew is set to Andrew(1) if identical entries already exists)
7. Improve preciseness of error messages to assist users more adequately in identifying issue. (e.g. m/ is not a valid parameter instead of showing the entire line of accepted command)
8. Standardise all variations to the same status terms like “Paid”, “Not Paid”, “Present” and “Absent” for consistency
